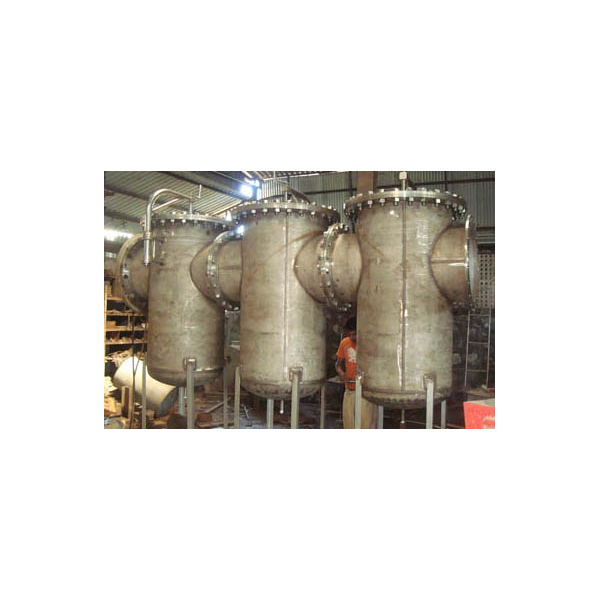

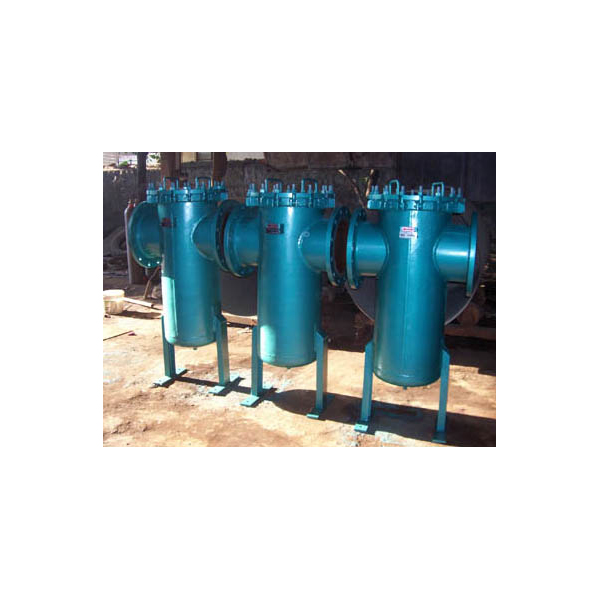

We manufacture Basket Strainers that permit the straining & filtering of a wide variety of fluids, to retain solids of almost any size. All baskets are easily removable & cleanable.The range of basket strainers offered by us are precision designed to meet the specific requirements of removing foreign particles in the flowing applications or services. Basket strainers flawless functionality standards also help in increasing the overall service life of the pumps, valves and other flow control equipment.
Bucket Strainer is a closed vessel with cleanable or removable screen or element for removingparticles from liquids or gases. Drain connection provided to remove accumulated particles or solids.
Basket strainer is used where cleaning may occur frequently, it stands to reason that the basket should be able to be removed and replaced as simply as possible. The strainer cover is held down by a clamping yoke which is sturdy enough to hold full line pressure and yet, which can be quickly loosened or tightened by hand. Bolted covers are also furnished with basket strainers and they cost less than yoke covers
We have been making use of high grade raw material which is procured from reliable vendors to manufacture basket strainers. These strainers are widely demanded for straining foreign matter from the pipe line thus providing a cost-effective protection of pumps, meters, valves and similar mechanical equipment. Specifically used for drinking water, cooling water, hot water system sea water, these are used in various industries such as brine, paint heat exchanger, condensers, fuel oil, organic and inorganic chemicals.It is also effective for those applications, where non-standard construction materials are used.
Basket Type Strainers are of two types:

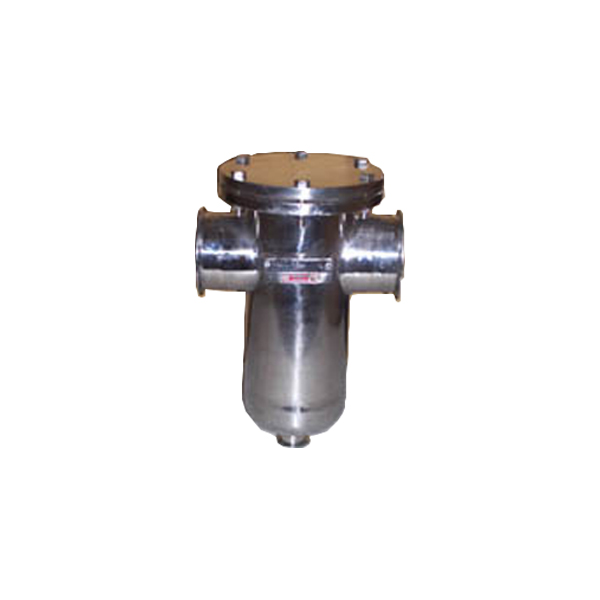

- *Simplex Strainers
- *Duplex Strainers

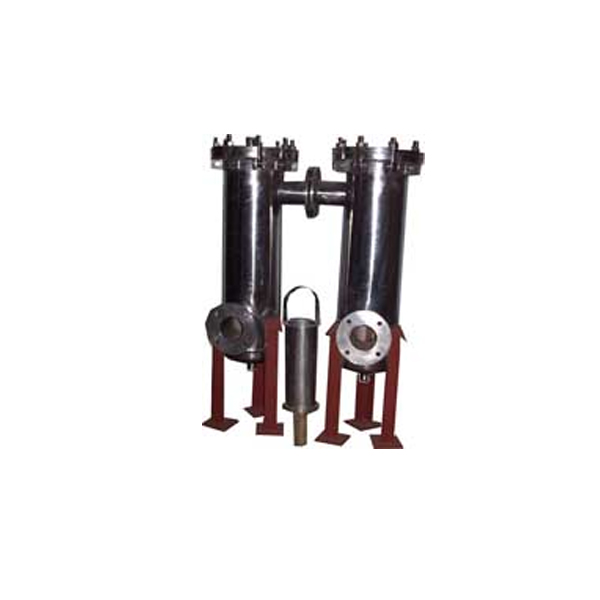

Duplex strainers consists of 2 Nos. Simplex strainers connected with 3 way-valves to facilitate use of one simplex strainers at a time.
Construction : Main Body-Cast C.S or Cast SS 304, SS 316
Fabricated Carbon Steel or Fabricated SS 304, SS 316
Element : SS 304, SS 316 model or as per customers requirement.
